Product Summary

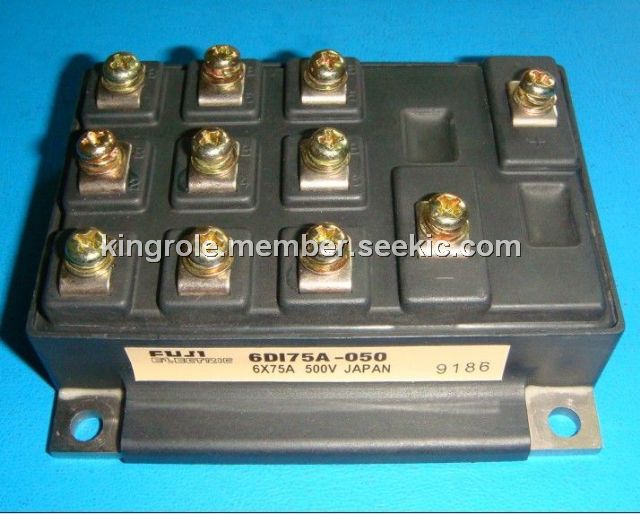

The 6DI75A-050 is a power transistor module. It is designed for AC motor controls and air conditioners.

Parametrics

6DI75A-050 absolute maximum ratings: (1)VCBO: 600V; (2)VCEO: 600V; (3)VCEO(SUS): 450V; (4)VEBO: 7V; (5)IC: 75A; (6)ICP: 150A; (7)-IC: 75A; (8)IB: 4.5A; (9)IBP: 9A; (10)PC: 350W; (11)Tj: +150℃; (12)Tstg: -40~+125℃; (13)m: 450g; (14)Viso: 2500V; (15)Mounting*1: 3.5N.m; (16)Terminal*2: 1.7N.m.

Features

6DI75A-050 features: (1)Including free wheeling diode; (2)High DC current gain; (3)Insulated type.

Diagrams

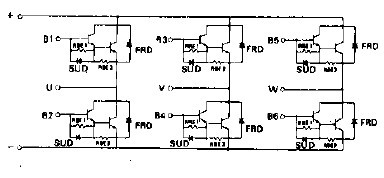

6DI75A-050 equivalent circuit
