Product Summary
The RC0603JR-073K3 is a chip resistor with lead-free terminations made by thick film process.
Parametrics
RC0603JR-073K3 characteristics: (1)Operating Temperature Range: –55 ℃ to +155 ℃; (2)Maximum Working Voltage: 50 V; (3)Maximum Overload Voltage: 100 V; (4)Dielectric Withstanding Voltage: 100 V; (5)Resistance Range: 5% (E24) 1 Ω to 22 MΩ; 1% (E96) 1 Ω to 10 MΩ; Zero Ohm Jumper < 0.05 Ω; (6)Temperature Coefficient: 10 Ω < R ≤ 10 MΩ ±100 ppm/℃; R ≤ 10 Ω; R > 10 MΩ ±200 ppm/℃; (7)Jumper Criteria: Rated Current 1.0 A; Maximum Current 2.0 A.
Features
RC0603JR-073K3 features: (1)The resistors have a 12-digit ordering code starting with 2322; (2)The subsequent 4 or 5 digits indicate the resistor tolerance and packaging; (3)The remaining 4 or 3 digits represent the resistance value with the last digit indicating the multiplier as shown in the table of "last digit of 12NC"; (4)L means lead-free terminations.

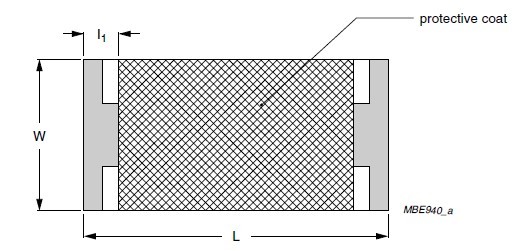

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RC0603JR-073K3L |
Yageo |
Thick Film Resistors - SMD 3.3K OHM 5% |
Data Sheet |
|
|
||||||||||||||
