Product Summary
The QM50DY-H is a transistor module. It is designed for AC motor controllers, UPS, DC motor controllers, NC equipment, Welders.
Parametrics
QM50DY-H absolute maximum ratings: (1)On the conditions of IC=1A, VEB=2V, VCEX (SUS) Collector-emitter voltage: 600V; (2)On the conditions of VEB=2V, VCEX Collector-emitter voltage: 600V; (3)On the conditions of Emitter open, VCBO Collector-base voltage: 600V; (4)On the conditions of Collector open, VEBO Emitter-base voltage: 7V; (5)On the conditions of DC, IC Collector current: 50A; (6)On the conditions of DC, -IC Collector reverse current: 50A; (7)On the conditions of TC=25℃, PC Collector dissipation: 310W.
Features
QM50DY-H features: (1)IC Collector current: 50A; (2)VCEX Collector-emitter voltage: 600V; (3)hFE DC current gain: 75; (4)Insulated Type; (5)UL Recognized: Yellow Card No. E80276 (N); File No. E80271.

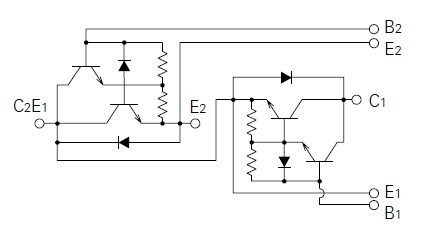

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 QM50DY-H |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
QM50DY-HB |
Other |
|
Data Sheet |
Negotiable |
|
||||
