Product Summary

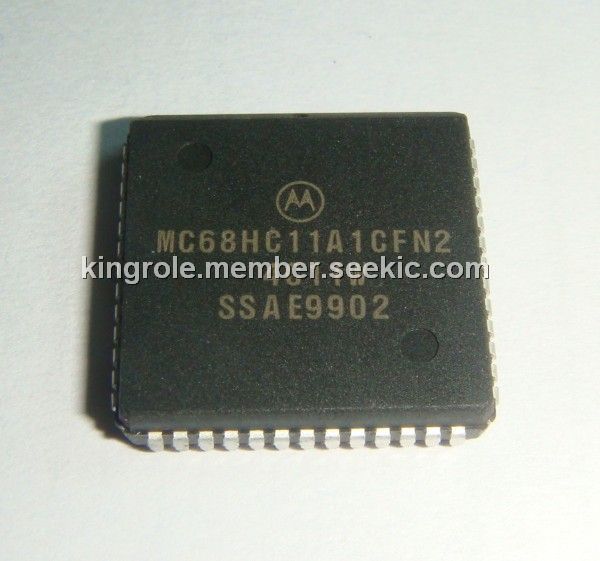

MC68HC11A1CFN2 is a type of HCMOS single-chip microcontroller.
Parametrics
MC68HC11A1CFN2 maximum ratings: (1)Supply Voltage: VDD= – 0.3 to + 7.0 V; (2)Input Voltage: Vin= – 0.3 to + 7.0 V; (3)Storage Temperature Range: – 55 to 150℃; (4)Current Drain per Pin: 25mA.
Features
MC68HC11A1CFN2 features: (1)8 Kbytes of ROM; (2)512 Bytes of EEPROM; (3)256 Bytes of RAM (All Saved During Standby) Relocatable to ; (4)8-Bit Pulse Accumulator Circuit; (5)Enhanced NRZ Serial Communications Interface (SCI); (6)Serial Peripheral Interface (SPI); (7)Eight Channel, 8-Bit Analog-to-Digital Converter; (8)Real Time Interrupt Circuit; (9)Computer Operating Properly (COP) Watchdog System; (10)Available in Dual-In-Line or Leaded Chip Carrier Packages.
Diagrams
 |
