Product Summary

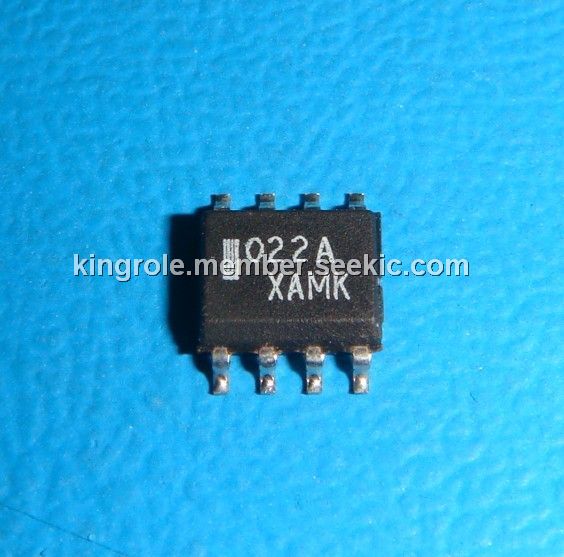

The MC12022LVAD is a 1.1GHz low-voltage dual modulus prescaler. The MC12022LVAD can be used with CMOS synthesizers requiring positive edges to trigger internal counters. The Modulus Control (MC) selects the proper divide number after SW has been biased to select the desired divide ratio.

Parametrics

MC12022LVAD absolute maximum ratings: (1)Power Supply Voltage, Pin 2, VCC: –0.5 to 7.0 Vdc; (2)Operating Temperature Range, TA: –40 to 85℃; (3)Storage Temperature Range, Tstg: –65 to 150℃; (4)Modulus Control Input, Pin 6, MC: –0.5 to 6.5 Vdc.

Features

MC12022LVAD features: (1)1.1 GHz Toggle Frequency; (2)Supply Voltage of 2.7 to 5.0 V; (3)Low–Power 4.0 mA Typical at VCC = 2.7 V; (4)Operating Temperature Range of –40 to 85℃; (5)Short Setup Time (tset) 16ns Maximum @ 1.1 GHz; (6)Modulus Control Input Level Is Compatible With Standard CMOS and TTL.

Diagrams

MC12022LVAD logic diagram
