Product Summary

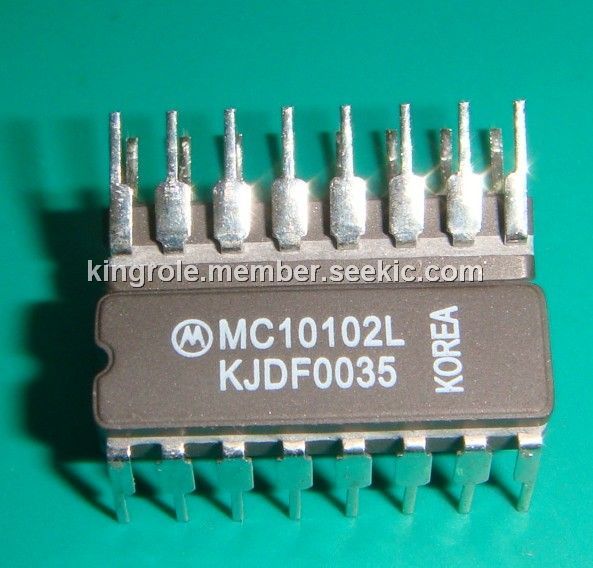

The MC10102L is a quad 2–input NOR gate. The MC10102L provides one gate with OR/NOR outputs.

Parametrics

MC10102L maximum ratings: (1)Power Supply Drain Current: IE 29 mAdc max.; (2)Input Current IinH: 425 mAdc max.; (3)Output Voltage Logic 1 VOH: -1.060~-0.890Vdc; (4)Threshold Voltage Logic 0 VOLA: –1.655Vdc; (5)Threshold Voltage Logic 1 VOHA: –1.080~–0.980Vdc.

Features

MC10102L features: (1)PD = 25 mW typ/gate (No Load); (2)tpd = 2.0 ns typ,tr; (3)tf = 2.0 ns typ (20%~0%).
