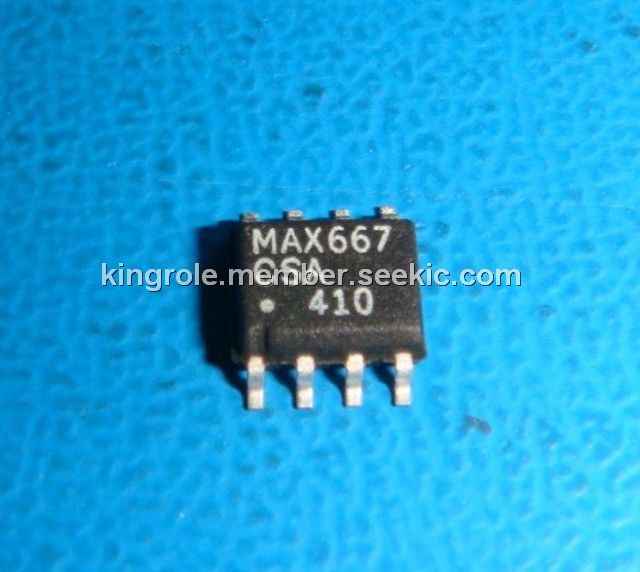

MAX667CSA

low-dropout, positive, linear voltage regulator, SOP, 727mW, 50mA, +18V, early-warning, low-dropout

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.60~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.60~1.00

PartNumber:: MAX667CSA

Brand:: Maxim Integrated Products - Maxim | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. winona's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-13

From Other Seller

Part Number:MAX667CSA
US $0.60 - 1.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

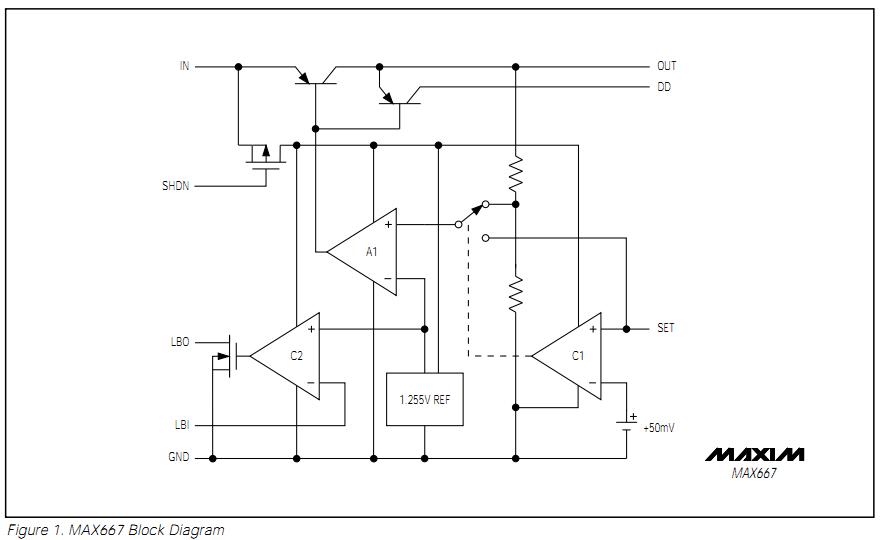

The MAX667CSA is a low-dropout, positive, linear voltage regulator. With no load, the MAX667CSA has a typical quiescent current of 20μA. At 200mA of output current, the input/output voltage differ-ential is typically 150mV. Other features of the MAX667CSA include a low-voltage detector to indicate power failure, as well as early-warning and low-dropout detectors to indicate an imminent loss of output voltage regulation. A shutdown control disables the output and puts the circuit into a low quiescent-current mode. The applications of the MAX667CSA include Battery-Powered Devices, Pagers and Radio Control Receivers, Portable Instruments and Solar-Powered Instruments.

Parametrics

MAX667CSA absolute maximum ratings: (1)Input Supply Voltage: +18V; (2)Output Short Circuited to Ground: 1sec; (3)LBO Output Sink Current: 50mA; (4)LBO Output Voltage: GND to VOUT; (5)SHDN Input Voltage: -0.3V to (VIN + 0.3V); (6)Input Voltages LBI, SET: -0.3V to (VIN - 1.0V); (7)Continuous Power Dissipation: 727mW; (8)Operating Temperature Ranges: 0 to +70℃; (9)Storage Temperature Range: -65 to +160℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX667CSA features: (1)350mV Max Dropout at 200mA; (2)250mA Output Current; (3)Normal Mode: 20μA Typ Quiescent Current; Shutdown Mode: 0.2μA Typ Quiescent Current; (4)Low-Battery Detector; (5)Fixed +5V (Min Component Count) or Adjustable Output; (6)+3.5V to +16.5V Input; (7)Dropout Detector Output; (8)10μF Output Capacitor.
