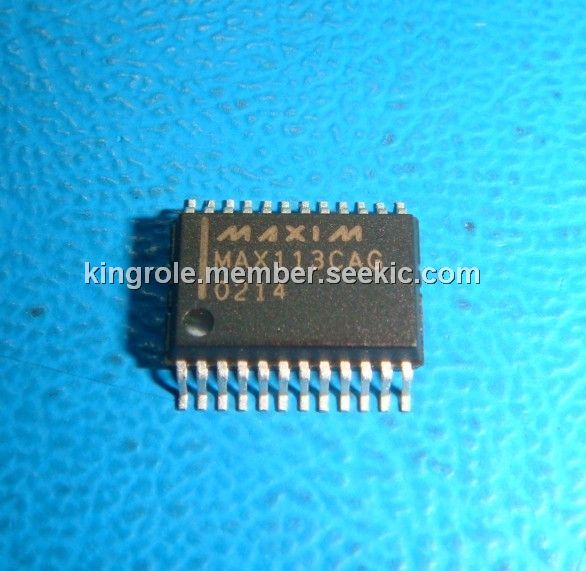

MAX113CAG

analog-to-digital converter, QFP, -0.3V to +7V, microprocessor-compatible, 8-bit, 4-channel, Low Power

Rated 5 Rating 5 | reviews | Write a review

Price:: US $5.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $5.00~10.00

PartNumber:: MAX113CAG

Brand:: Maxim Integrated Products - Maxim | Pack: QFP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. winona's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-13

From Other Seller

Part Number:MAX113CAG
US $5.00 - 10.00
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

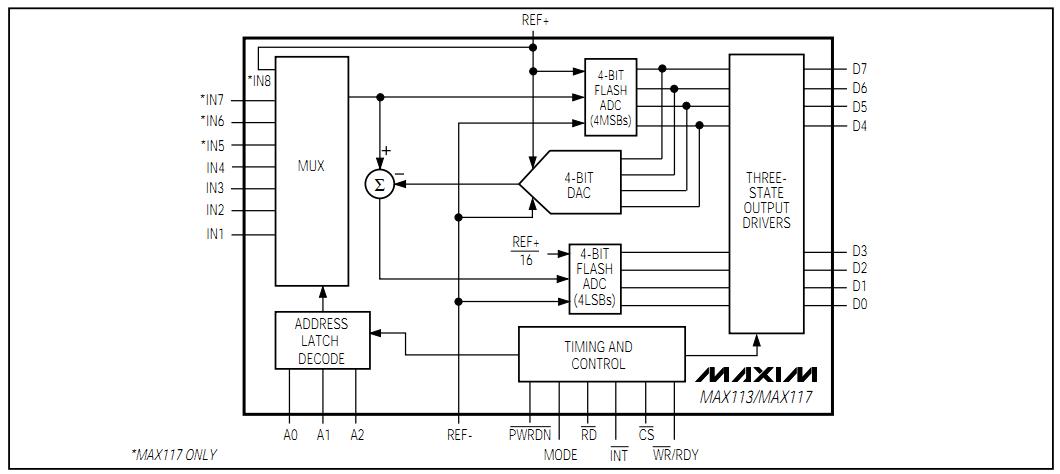

The MAX113CAG is a microprocessor-compatible, 8-bit, 4-channel analog-to-digital converter (ADC). The MAX113CAG operates from a single +3V supply and use a half-flash technique to achieve a 1.8µs conversion time (400ksps). A power-down pin (PWRDN) reduces current consumption to 1µA typical. The MAX113CAG returns from power-down mode to normal operating mode in less than 900ns, allowing large supply-current reductions in burst-mode applications. (In burst mode, the ADC wakes up from a low-power state at specified intervals to sample the analog input signals.) The MAX113CAG includes a track/hold, enabling the ADC to digitize fast analog signals.

Parametrics

MAX113CAG absolute maximum ratings: (1)VDD to GND: -0.3V to +7V; (2)Digital Input Voltage to GND: -0.3V to (VDD + 0.3V); (3)Digital Output Voltage to GND: -0.3V to (VDD + 0.3V); (4)REF+ to GND: -0.3V to (VDD + 0.3V); (5)REF- to GND: -0.3V to (VDD + 0.3V); (6)IN_ to GND: -0.3V to (VDD + 0.3V); (7)Continuous Power Dissipation (TA = +70℃): 640mW; (8)Operating Temperature Ranges: 0 to +70℃; (9)Storage Temperature Range: -65 to +150℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX113CAG features: (1)+3.0V to +3.6V Single-Supply Operation; (2)4 Analog Input Channels; (3)Low Power: 1.5mA (operating mode) 1μA (power-down mode); (4)Total Unadjusted Error ≤ 1LSB; (5)Fast Conversion Time: 1.8μs per Channel; (6)No External Clock Required; (7)Internal Track/Hold; (8)Ratiometric Reference Inputs; (9)Internally Connected 8th Channel Monitors Reference Voltage.
