Product Summary
The LTC2051HVIS8#PBF is a dual zero-drift operational amplifier available in the MS8 and SO-8 packages. It operates from a single 2.7V supply while still supporting ±5V applications. The power consumption is 750mA per op amp. The LTC2051HVIS8#PBF, despite its miniature size, features uncompromising DC performance. The typical input offset voltage and offset drift are 0.5mV and 10nV/℃. The applications of the LTC2051HVIS8#PBF include: (1)Thermocouple Amplifiers; (2)Electronic Scales; (3)Medical Instrumentation; (4)Strain Gauge Amplifiers; (5)High Resolution Data Acquisition; (6)DC Accurate RC Active Filters.
Parametrics
LTC2051HVIS8#PBF absolute maxing ratings: (1)Total Supply Voltage (V+ to V –): 12V; (2)Input Voltage: (V + + 0.3V) to (V – – 0.3V); (3)Output Short-Circuit Duration: Indefinite; (4)Operating Temperature Range: –40℃ to 85℃; (5)Specified Temperature Range: –40℃ to 85℃; (6)Storage Temperature Range: – 65℃ to 150℃; (7)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LTC2051HVIS8#PBF features: (1)Maximum Offset Voltage of 3μV; (2)Maximum Offset Voltage Drift of 30nV/℃; (3)Small Footprint, Low Profile MS8 Package; (4)Noise: 1.5μVP-P (0.1Hz to 10Hz Typ); (5)Voltage Gain: 140dB (Typ); (6)PSRR: 130dB (Typ); (7)CMRR: 130dB (Typ); (8)Supply Current: 0.75mA (Typ) per Amplifier; (9)Single Supply Operation: 2.7V to 11V; (10)Extended Common Mode Input Range; (11)Output Swings Rail-to-Rail; (12)Overload Recovery Time: 2ms (Typ); (13)Operating Temperature Range –40℃ to 85℃.

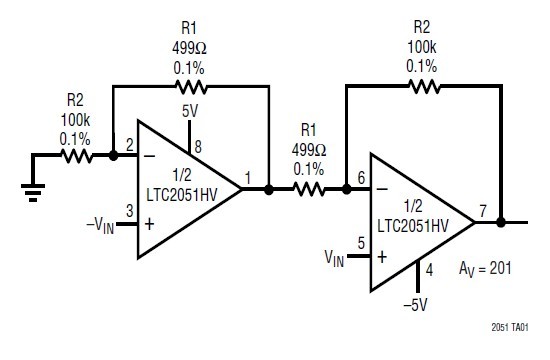

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

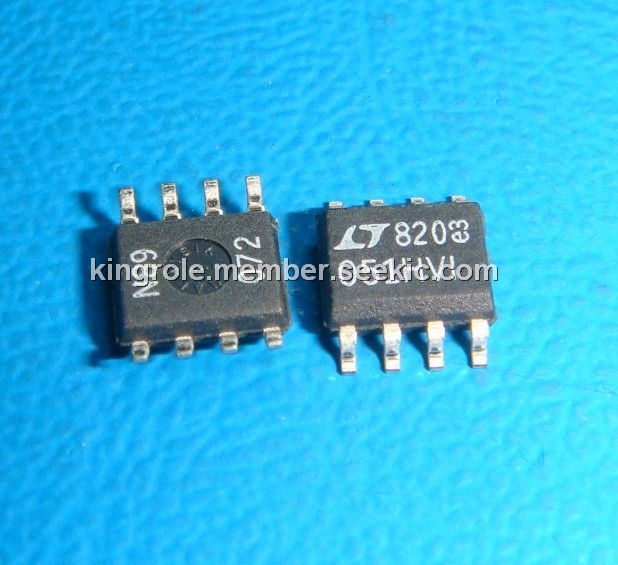

LTC2051HVIS8#PBF |
IC OP-AMP ZERO-DRIFT DUAL 8-SOIC |
Data Sheet |
|
|
||||||||||||
