Product Summary
The LT1175CST-5 is a negative micropower low dropout regulator. It features 45μA quiescent current, dropping to 10μA in shutdown. A new reference amplifier topology gives precision DC characteristics along with the ability to maintain good loop stability with an extremely wide range of output capacitors. Very low dropout voltage and high efficiency are obtained with a unique power transistor anti-saturation design. Adjustable and fixed 5V versions are available. The applications of the LT1175CST-5 include: (1)Analog Systems; (2)Modems; (3)Instrumentation; (4)A/D and D/A Converters; (5)Interface Drivers; (6)Battery-Powered Systems.
Parametrics
LT1175CST-5 absolute maxing ratings: (1)Input Voltage (Transient 1 sec): 25V; (2)Input Voltage (Continuous): 20V; (3)Input-to-Output Differential Voltage: 20V; (4)5V SENSE Pin (with Respect to GND Pin): 2V, -10V; (5)ADJ SENSE Pin(with Respect to OUTPUT Pin): 20V, -0.5V; (6)5V SENSE Pin(with Respect to OUTPUT Pin): 20V, -7V; (7)Output Reverse Voltage: 2V; (8)SHDN Pin to GND Pin Voltage: 13.5V, -20V; (9)SHDN Pin to VIN Pin Voltage: 30V, -5V; (10)Operating Junction Temperature Range: 0℃ to 125℃; (11)Ambient Operating Temperature Range: 0℃ to 70℃; (12)Storage Temperature Range: -65℃ to 150℃; (13)Lead Temperature (Soldering, 10 sec): 300℃.
Features
LT1175CST-5 features: (1)Operating Current: 45μA; (2)Adjustable Current Limit; (3)Low Voltage Linear Dropout Characteristics; (4)Stable with Wide Range of Output Capacitors; (5)Shutdown Current: 10μA; (6)Positive or Negative Shutdown Logic; (7)Fixed 5V and Adjustable Versions; (8)Tolerates Reverse Output Voltage; (9)Available in 8-pin PDIP and SO Packages, 3-lead SOT-223, 5-Pin Surface Mount DD and Through-Hole TO-220 Packages.

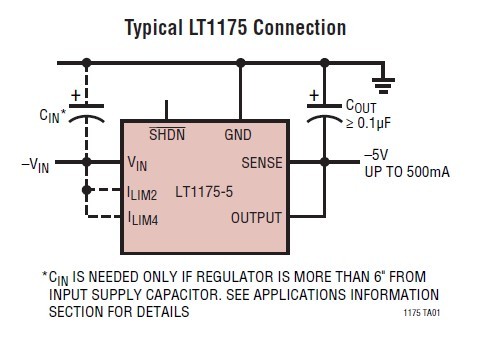

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

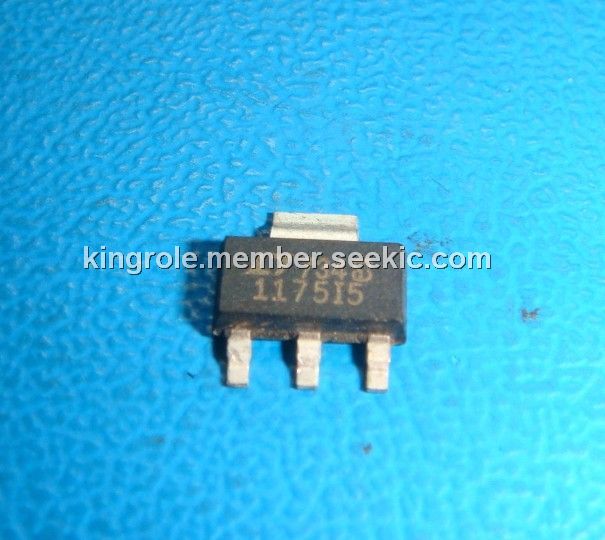

 LT1175CST-5 |
|
IC REG LDO -5V .5A SOT223-3 |
Data Sheet |
|
|
||||||||||
|
LT1175CST-5#PBF |
|
IC REG LDO -5V .5A SOT223-3 |
Data Sheet |
|
|
||||||||||
|
LT1175CST-5#TR |
|
IC REG LDO -5V .5A SOT223-3 |
Data Sheet |
|
|
||||||||||
|
LT1175CST-5#TRPBF |
|
IC REG LDO -5V .5A SOT223-3 |
Data Sheet |
|
|
||||||||||
