Product Summary
The LM393D is a low power dual voltage comparator. It consists of two independent low voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. The LM393D also has an unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.
Parametrics
LM393D absolute maxing ratings: (1)VCC Supply Voltage: ±18 or 36 V; (2)Vid Differential Input Voltage: ±36 V; (3)Vi Input Voltage: -0.3 to +36 V; (4)Output Short-circuit to Ground - note (1): Infinite; (5)Pd Power Dissipation (2) DIP-8: 1250mW; SO-8: 710mW; TSSOP8: 625mW; Mini SO-8: 580mW; (6)Tstg Storage Temperature Range: -65 to +150℃.
Features
LM393D features: (1)Wide single-supply voltage range or dual supplies: +2V to +36V or ±1V to ±18V; (2)Very low supply current (0.4mA) independent of supply voltage (1mW/comparator at +5V); (3)Low input bias current: 25nA typ.; (4)Low input offset current: ±5nA typ.; (5)Low input offset voltage: ±1mV typ.; (6)Input common-mode voltage range includes ground; (7)Low output saturation voltage: 250mV typ. (Io=4mA); (8)Differential input voltage range equal to the supply voltage; (9)TTL, DTL, ECL, MOS, CMOS compatible outputs.

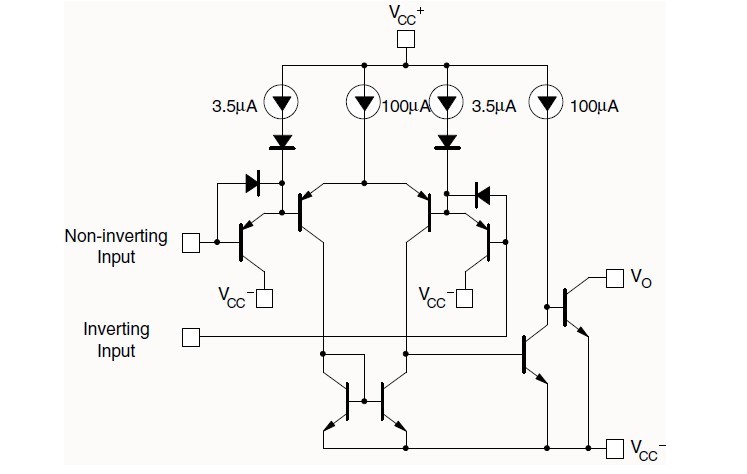

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() LM393DE4 |
![]() Texas Instruments |
![]() Comparator ICs Dual Differential Comparator |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() LM393DG |
![]() ON Semiconductor |
![]() Comparator ICs 2-36V Dual Commercial Temp |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() LM393DG4 |
![]() Texas Instruments |
![]() Comparator ICs Dual Differential Comparator |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() LM393DGKR |
![]() Texas Instruments |
![]() Comparator ICs Dual Differential Comparator |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() LM393DGKRG4 |
![]() Texas Instruments |
![]() Comparator ICs Dual Differential Comparator |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() LM393DMR2 |
![]() ON Semiconductor |
![]() Comparator ICs 2-36V Dual |
![]() Data Sheet |
![]() Negotiable |
|
||||||||||||
![]() |
![]() LM393DMR2G |
![]() ON Semiconductor |
![]() Comparator ICs 2-36V Dual Commercial Temp |
![]() Data Sheet |
![]()
|
|
||||||||||||
![]() |
![]() LM393DR |
![]() Texas Instruments |
![]() Comparator ICs Dual Differential |
![]() Data Sheet |
![]()
|
|
