Product Summary

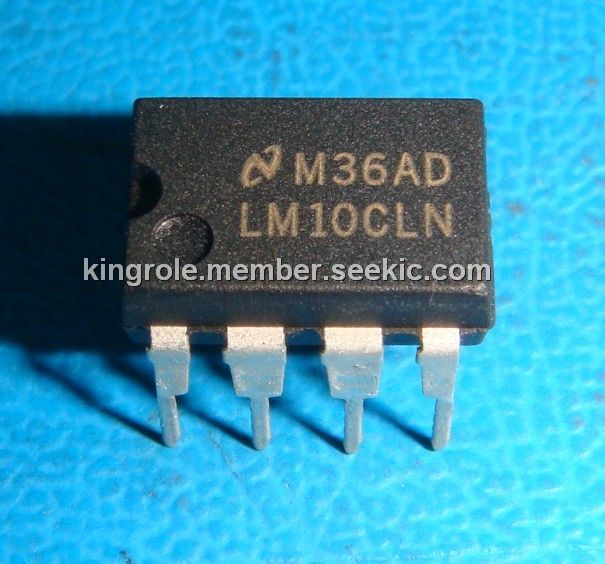

The LM10CLN is a operational amplifier and voltage referance. It is a monolithic linear IC consisting of a precision reference, an adjustable reference buffer and an independent, high quality op amp. The LM10CLN can operate from a total supply voltage as low as 1.1V or as high as 40V, drawing only 270μA. A complementary output stage swings within 15mV of the supply terminals or will deliver ±20 mA output current with ±0.4V saturation. Reference output can be as low as 200 mV.

Parametrics

LM10CLN absolute maxing ratings: (1)Total Supply Voltage: 7V; (2)Differential Input Voltage: ±7V; (3)Power Dissipation: internally limited; (4)Output Short-circuit Duration: continuous; (5)Storage-Temp. Range: -55℃ to +150℃; (6)Lead Temp. (Soldering, 10 seconds)Metal Can: 300℃; (7)Lead Temp. (Soldering, 10 seconds) DIP: 260℃; (8)Vapor Phase (60 seconds): 215℃; (9)Infrared (15 seconds): 220℃; (10)Maximum Junction Temperature: 85℃.

Features

LM10CLN features: (1)input offset voltage: 2.0mV (max); (2)input offset current: 0.7nA (max); (3)input bias current: 20nA (max); (4)reference regulation: 0.1% (max); (5)offset voltage drift: 2μV/℃; (6)reference drift: 0.002%/℃.

Diagrams
