Product Summary

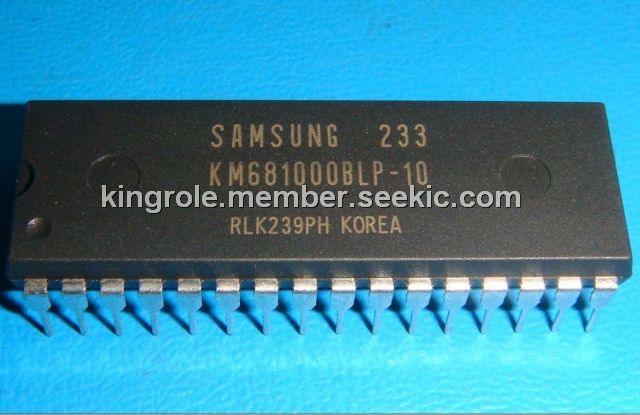

The KM681000BLP-10 is a 128K x8 bit low power CMOS static RAM. It is fabricated by the advanced CMOS process technology of SAMSUNG. The device supports various operating temperature ranges and has various package types for user flexibility of system design. The KM681000BLP-10 also supports low data retention voltage for battery back-up operation with low data retention current.

Parametrics

KM681000BLP-10 absolute maxing ratings: (1)Voltage on any pin relative to Vss VIN, VOUT: -0.5 to 7.0V; (2)Voltage on Vcc supply relative to Vss VCC: -0.5 to 7.0V ; (3)Power Dissipation PD: 1.0W; (4)Storage temperature TSTG: -65 to 150℃; (5)Operating Temperature TA: 0 to 70℃; (6)Soldering temperature and time TSOLDER: 260℃, 10sec (Lead Only).

Features

KM681000BLP-10 features: (1)Process Technology: 0.6 CMOS; (2)Organization: 128K×8; (3)Power Supply Voltage: single 5.0V 10%; (4)Low Data Retention Voltage: 2V(Min); (5)Three state output and TTL Compatible; (6)Package Type: JEDEC Standard 32-DIP, 32-SOP, 32-TSOP I R/F.

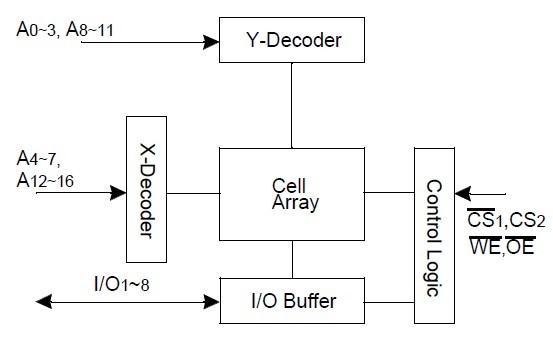

Diagrams

KM681000B
KM681000B
