Product Summary

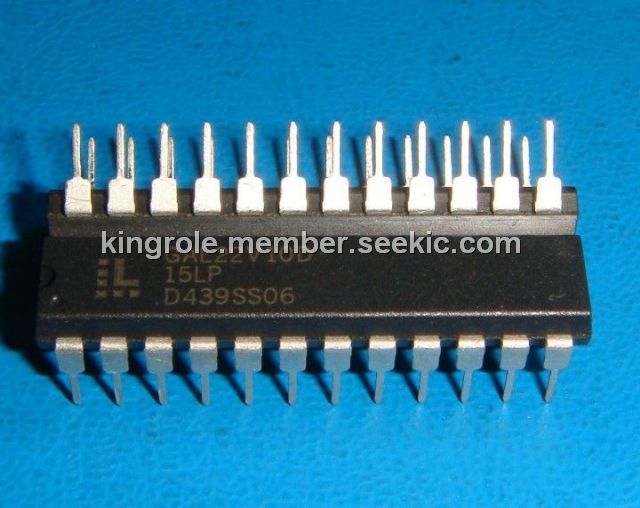

The GAL22V10D-15LP is a high performance E2CMOS PLD generic array logic Lattice Semiconductor, which at 4ns maximum propagation delay time, combines a high performance CMOS process with Electrically Erasable (E2) floating gate technology to provide the highest performance available of any 22V10 device on the market. CMOS circuitry allows the GAL22V10D-15LP to consume much less power when compared to bipolar 22V10 devices. The GAL22V10D-15LP is suitable for DMA control.
Parametrics
GAL22V10D-15LP maximum ratings: (1)Supply voltage VCC: -0.5 to +7V; (2)Input voltage applied: -2.5 to VCC +1.0V; (3)Off-state output voltage applied: -2.5 to VCC +1.0V; (4)Storage Temperature: -65 to 150℃; (5)Ambient Temperature with Power Applied: -55 to 125℃.
Features
GAL22V10D-15LP features: (1)High performance E2CMOS technology; (2)Active pill-ups on all pins; (3)Compatible with standard 22V10 devices; (4)50% to 75% reduction in power versus bipolar; (5)E2CELL technology; (6)Ten output logic macrocells; (7)Preload and power-on reste of registers.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 GAL22V10D-15LP |
Lattice |
SPLD - Simple Programmable Logic Devices 5V 22 I/O |
Data Sheet |
Negotiable |
|
||||||
|
GAL22V10D-15LPI |
Lattice |
SPLD - Simple Programmable Logic Devices HI PERF E2CMOS PLD |
Data Sheet |
|
|
||||||
|
GAL22V10D-15LPNI |
Lattice |
SPLD - Simple Programmable Logic Devices HI PERF E2CMOS PLD |
Data Sheet |
|
|
||||||
|
GAL22V10D-15LPN |
Lattice |
SPLD - Simple Programmable Logic Devices HI PERF E2CMOS PLD |
Data Sheet |
|
|
||||||
