Product Summary

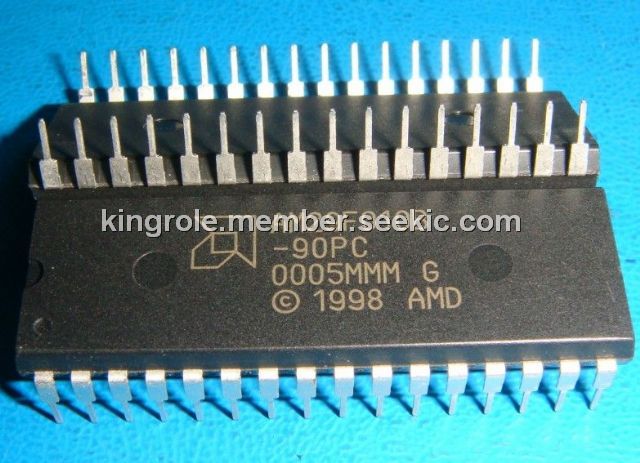

The AM29F010B-90PC is a 1 Mbit, 5.0 Volt-only Flash memory organized as 131,072 bytes. The AM29F010B-90PC is offered in 32-pin PDIP, PLCC and TSOP packages. The byte-wide data appears on DQ0-DQ7. The AM29F010B-90PC is designed to be programmed in-system with the standard system 5.0 Volt VCC supply. A 12.0 volt VPP is not required for program or erase operations. The device can also be programmed or erased in standard EPROM programmers. This AM29F010B-90PC is manufactured using AMD 0.32 μm process technology, and offers all the features and benefits of the Am29F010 and Am29F010A. The standard device of the AM29F010B-90PC offers access times of 45, 55, 70, 90, and 120 ns, allowing high-speed microprocessors to operate without wait states. To eliminate bus contention the device has separate chip enable (CE#), write enable (WE#) and output enable (OE#) controls.
Parametrics
AM29F010B-90PC absolute maximum ratings: (1)Storage Temperature Plastic Packages : –65℃ to +125℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Voltage with Respect to Ground VCC: –2.0 V to +7.0 V; (4)A9: –2.0 V to +13.0 V; (5)All other pins: –2.0 V to +7.0 V; (6)Output Short Circuit Current: 200 mA.
Features
AM29F010B-90PC features: (1)Single power supply operation; (2)Manufactured on 0.32 μm process technology; (3)High performance; (4)Low power consumption; (5)Flexible sector architecture; (6)Sector protection; (7)Embedded Algorithms; (8)Erase Suspend/Resume; (9)Minimum 1 million erase cycles guaranteed per sector; (10)20-year data retention at 125℃; (11)Compatible with JEDEC standards.
Diagrams
