Product Summary

The AD581LH is a three-terminal, temperature compensated, monolithic bandgap voltage reference which provides a precise 10.00 volt output from an unregulated input level from 12 to 30 volts. The AD581LH is recommended for use as a reference for 8-, 10- or 12-bit D/A converters which require an external precision reference. The device is also ideal for all types of A/D converters up to 14-bit accuracy, either successive approximation or integrating designs, and in general can offer better performance than that provided by standard self-contained references.

Parametrics

AD581LH maximum ratings: (1)Input Voltage: 40 V; (2)Power Dissipation @ +25℃: 600 mW; (3)Operating Junction Temperature Range: –55℃ to +150℃; (4)Lead Temperature (Soldering 10 sec): +300℃; (5)Thermal Resistance Junction-to-Ambient: 150℃/W.

Features

AD581LH features: (1)Laser Trimmed to High Accuracy:10.000 Volts ±5 mV (L and U); (2)Trimmed Temperature Coefficient: 5 ppm/℃ max, 0℃ to +70℃ (L), 10 ppm/℃ max, –55℃ to +125℃ (U); (3)Excellent Long-Term Stability:25 ppm/1000 hrs.(Noncumulative); (4)Negative 10 Volt Reference Capability; (5)Low Quiescent Current: 1.0 mA max; (6)10 mA Current Output Capability; (7)3-Terminal TO-5 Package; (8)MIL-STD-883 Compliant Versions Available.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

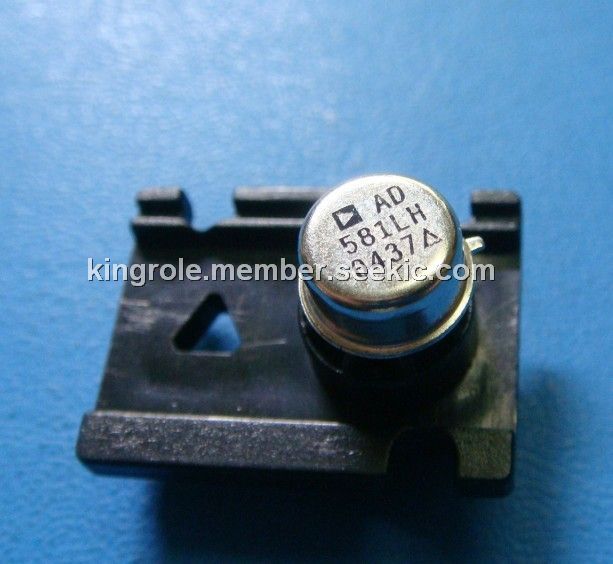

AD581LH
AD581LH


IC VREF SERIES PREC 10V TO-5-3

Data Sheet

0-1: $16.27
1-10: $15.05
10-100: $12.85
100-250: $11.79
250-500: $11.22
500-1000: $10.84
