Product Summary
The 2SC2510 is a 2~30MHz SSB linear power amplifier.
Parametrics
2SC2510 absolute maximum ratings: (1)Collector-base voltage VCBO: 60V; (2)Collector-emitter voltage VCES: 60V; (3)Collector-emitter voltage VCEO: 35V; (4)Emitter-base voltage VEBO: 4V; (5)Collector current IC: 20A; (6)Collector power dissipation PC: 250W; (7)Junction temperature Tj: 175℃; (8)Storage temperature range Tstg: -65~175℃.
Features
2SC2510 features: (1)Specified 28V, 28MHz characteristics; (2)Output power: Po=150WPEP(min); (3)Power gain: Gp=12.2dB(min); (4)Collector efficiency: ηC=35%(min); (5)Intermodulation distortion: IMD=-30dB(max).

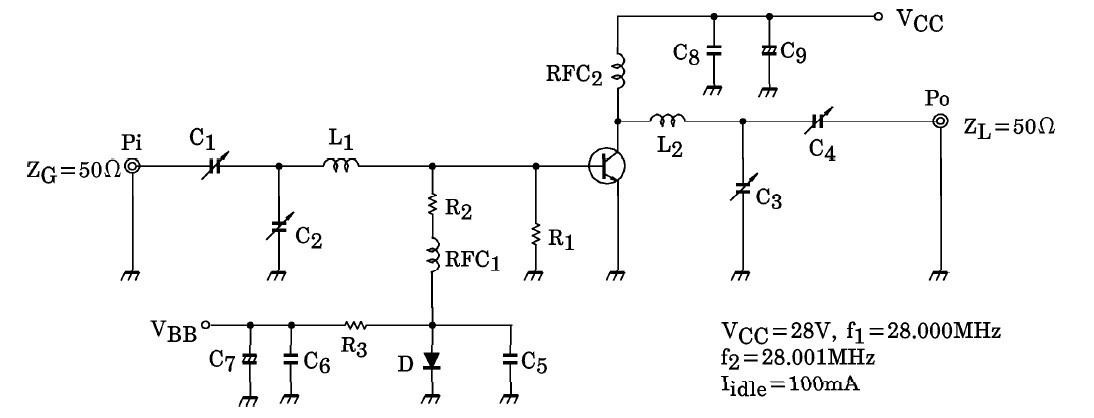

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SC2510 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2SC2510A |
Other |
|
Data Sheet |
Negotiable |
|
||||
