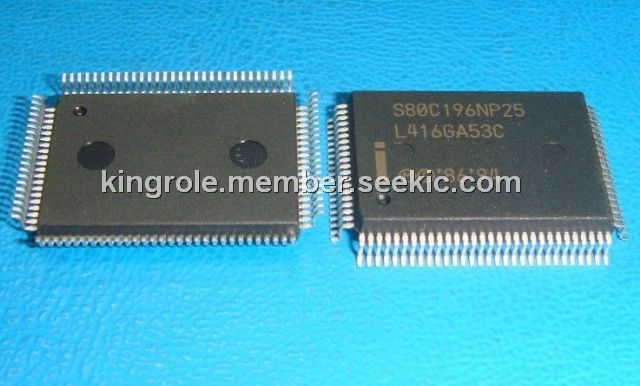

Product Summary

The S80C196NP25 is a member of 16-bit MCS 96 microcontroller family. The device features 1 Mbyte of linear address space, a demultiplexed bus, and a chip-select unit. The external bus can dynamically switch between multiplexed and demultiplexed operation. When operating at 25 MHz in demultiplexed mode, the S80C196NP25 can access a 100 ns memory device with zero wait states. The device is available without ROM (80C196NP) or with 4 Kbytes of ROM (83C196NP).

Parametrics

S80C196NP25 absolute maximum ratings: (1)Storage Temperature: –60℃ to +150℃; (2)Supply Voltage with Respect to VSS: –0.5 V to +7.0 V; (3)Power Dissipation: 1.5 W.

Features

S80C196NP25 features: (1)25 MHz Operation at 4.5–5.5 Volts; (2)1 Mbyte of Linear Address Space; (3)Optional 4 Kbytes of ROM; (4)1000 Bytes of Register RAM; (5)Register-register Architecture; (6)32 I/O Port Pins; (7)16 Prioritized Interrupt Sources; (8)4 External Interrupt Pins and NMI Pin; (9)2 Flexible 16-bit Timer/Counters with Quadrature Counting Capability; (10)3 Pulse-width Modulator (PWM) Outputs with High Drive Capability.

Diagrams

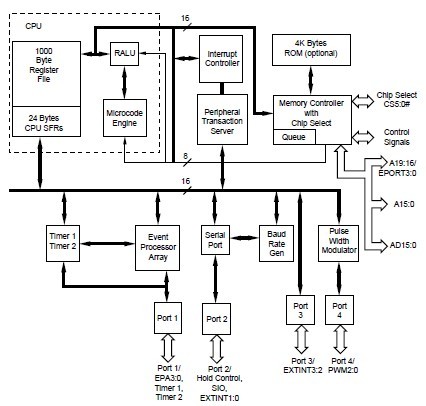

S80C196NP25 block diagram
