Product Summary

The MC7915ACD2TG fixed output negative voltage regulator is intended as complements to the popular MC7800 series devices. The negative regulator is available in the same seven-voltage options as the MC7800 devices. In addition, one extra voltage option commonly employed in MECL systems is also available in the MC7915ACD2TG. Available in fixed output voltage options from -5.0 V to -24 V, the regulator MC7915ACD2TG employs current limiting, thermal shutdown, and safe-area compensation making it remarkably rugged under most operating conditions. With adequate heatsinking the device can deliver output currents in excess of 1.0 A.

Parametrics

MC7915ACD2TG maximum ratings: (1)Input Voltage (.5.0 V ≥ VO ≥ .18 V), VI: -35 Vdc; (2)Input Voltage (24 V), -40 Vdc; (3)Power Dissipation: Case 221A, TA = +25℃, PD Internally Limited W; Thermal Resistance, Junction.to.Ambient θJA 65 ℃/W; Thermal Resistance, Junction.to.Case θJC 5.0 ℃/W; (4)Case 936 (D2PAK), TA = +25℃, PD Internally Limited W; Thermal Resistance, Junction.to.Ambient θJA 70 ℃/W; Thermal Resistance, Junction-to-Case θJC 5.0 ℃/W; (5)Storage Junction Temperature Range, Tstg: -65 to +150 ℃; (6)Junction Temperature, TJ: +150 ℃.

Features

MC7915ACD2TG features: (1)No External Components Required; (2)Internal Thermal Overload Protection; (3)Internal Short Circuit Current Limiting; (4)Output Transistor Safe-Area Compensation; (5)Available in 2% Voltage Tolerance (See Ordering Information); (6)Pb-Free Package May be Available. The G-Suffix Denotes a Pb-Free Lead Finish.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

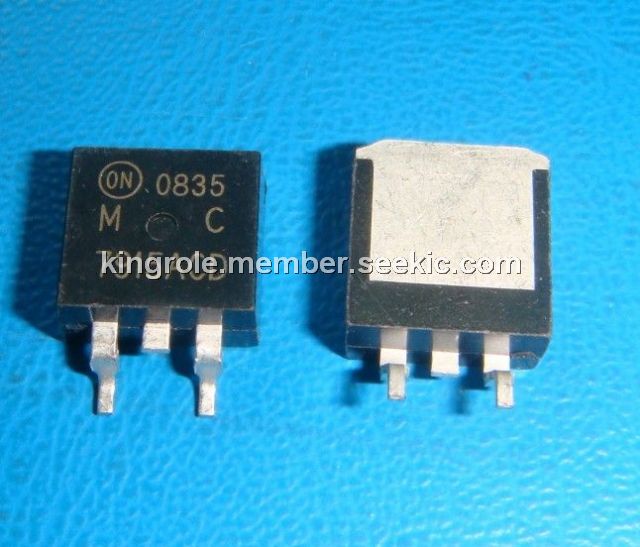

MC7915ACD2TG
MC7915ACD2TG
ON Semiconductor
Linear Regulators - Standard 15V 1A Negative
Data Sheet
0-1: $0.61
1-25: $0.50
25-100: $0.43
100-500: $0.35
