Product Summary

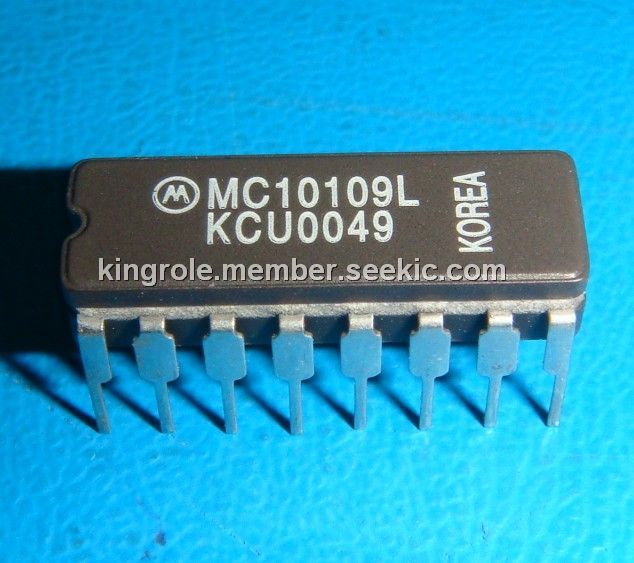

The MC10109L is a dual 4-5-input OR/NOR gate, which means ON semiconductor.

Parametrics

MC10109L maximum ratings: (1)Power Supply Drain Current: 15 max.(-30℃); 14max.(+25℃); 14max.( +85℃) mA; (2)Input Current: 425(-30℃); 265(+25℃, +85℃) μA; (3)Output Voltage Logic 1: –1.060 to –0.890 V(-30℃); -0.960 to -0.810 V( +25℃); –0.890 to –0.700V(+85℃); (4)Output Voltage Logic 0: –1.890 to –1.675 V(-30℃); -1.850 to -1.650 V( +25℃); –1.825 to –1.615V(+85℃).

Features

MC10109L features: (1)PD = 30 mW typ/gate (No Load); (2)tpd = 2.0 ns typ; (3)tr, tf = 2.0 ns typ (20%-0%).

Diagrams

MC10
MC10
