Product Summary

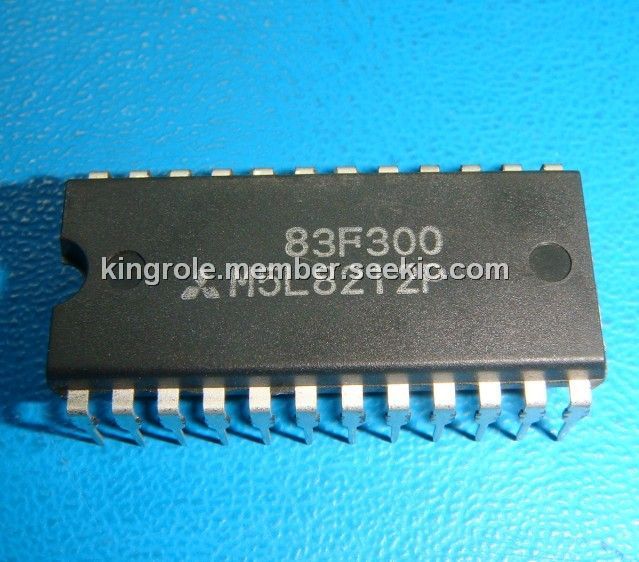

The M5L8212P is a programmable 4-channel direct memory access(DMA) controller. It is produced using the N-channel silicon-gate ED-MOS process and is specifically designed to simplify data transfer at high speeds for microcomputer systems. The M5L8212P operates on a single 5V power supply.
Parametrics
M5L8212P maximum ratings: (1)Power-supply voltage: -0.5 to 7V; (2)Input voltage: -0.5 to 7V; (3)Output voltage: -0.5 to 7V; (4)Power dissipation: Ta=25℃, 1000mW; (5)Operating free-air temperature range: -20 to 75℃; (6)Storage temperature range: -65 to 150℃.
Features
M5L8212P features: (1)Single 5V supply voltage; (2)TTL compatible interface; (3)Priority DMA request logic; (4)Channel-masking function; (5)Terminal count and Modulo 128 outputs; (6)4-channel DMA controller; (7)Compatible with MELPS85 devices.

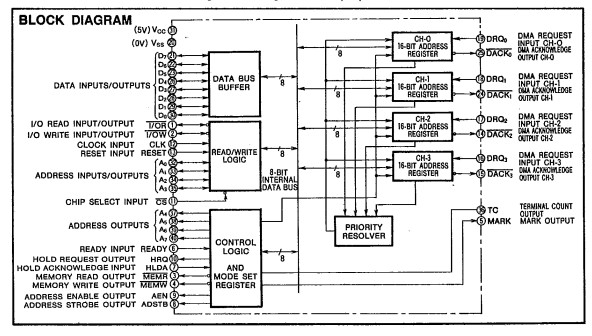

Diagrams
 |
