Product Summary

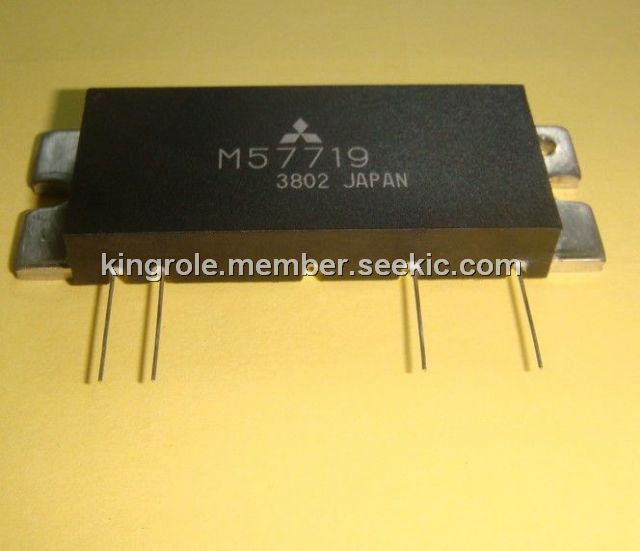

The M57719 is a RF power module. It is 145~175MHz, 12.5V, 14W. It is applied to FM mobile radio.
Parametrics
M57719 absolute maximum ratings: (1) Supply voltage: 17V; (2) Total current: 6A; (3) Input power: 0.4W; (4) Output power: 20W; (5) Operation case temperature: -30 to 110℃; (6) Storage temperature: -40 to 110℃.
Features
M57719 features: (1) Frequency range: 145~175MHz; (2) Output power: 14W; (3) Total efficiency: 40%; (4) 2nd harmonic: -25dBc; (5) 3nd harmonic: -35dBc; (6) Input VSWR, 4 .
Diagrams
