Product Summary

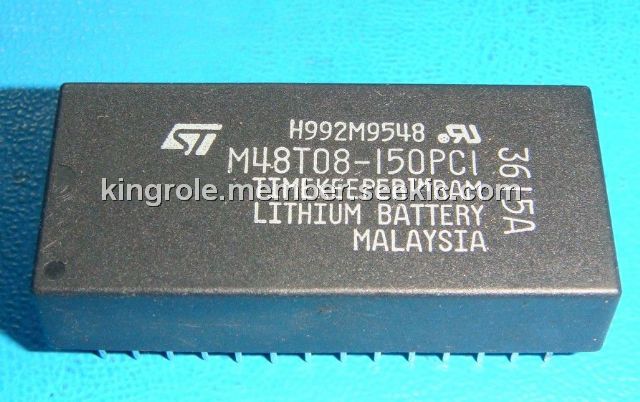

The M48T08-150PCI is a 8K x 8 non-volatile static RAM and real time clock which is pin and functional compatible with the DS1643. The monolithic chip is available in two special packages to provide a highly integrated battery backed-up memory and real time clock solution. The M48T08-150PCI is a non-volatile pin and function equivalent to any JEDEC standard 8K x 8 SRAM. The M48T08-150PCI is also easily fits into many ROM, EPROM, and EEPROM sockets, providing the non-volatility of PROMs without any requirement for specia WRITE timing or limitations on the number of WRITEs that can be performed.
Parametrics
M48T08-150PCI absolute maximum ratings: (1)TA, Ambient Operating Temperature: 0 to 70℃; (2)TSTG, Storage Temperature (VCC Off, Oscillator Off): –40 to 85℃; (3)TSLD(1,2,3),Lead Solder Temperature for 10 seconds: 260℃; (4)VIO, Input or Output Voltages: –0.3 to 7 V; (5)VCC, Supply Voltage: –0.3 to 7 V; (6)IO, Output Current: 20 mA; (7)PD, Power Dissipation: 1 W.
Features
M48T08-150PCI features: (1)integrated ultra low power sram, real time clock, power-fail control circuit, and battery; (2)bytewide ram-like clock access; (3)bcd coded year, month, day, date, hours, minutes, and seconds; (4)typical clock accuracy of ±1 minute a month, at 25℃; (5)automatic power-fail chip deselect and write protection; (6)write protect voltages; (7)software controlled clock calibration for high accuracy applications; (8)self-contained battery and crystal in the caphat? dip package; (9)packaging includes a 28-lead soic and snaphat top (to be ordered ; (10)separately); (11)soic package provides direct connection for a snaphat top which contains the battery and crystal; (12)pin and function compatible with ds1643 and jedec standard 8k x8 srams; (13)RoHS compliance.
