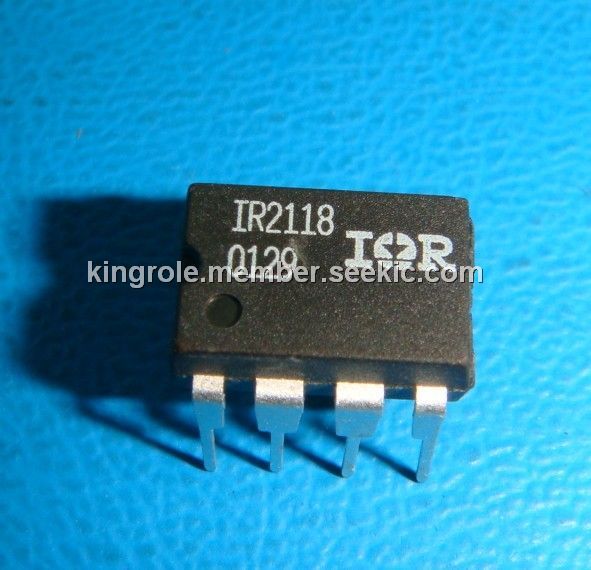

IR2118

single channel driver, DIP, -0.3 to 625 V, Undervoltage lockout, 1.0W, Undervoltage lockout

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.80 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.80

PartNumber:: IR2118

Brand:: International Rectifier - IR | Pack: DIP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. winona's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-13

From Other Seller

Part Number:IR2118
US $0.50 - 0.80
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

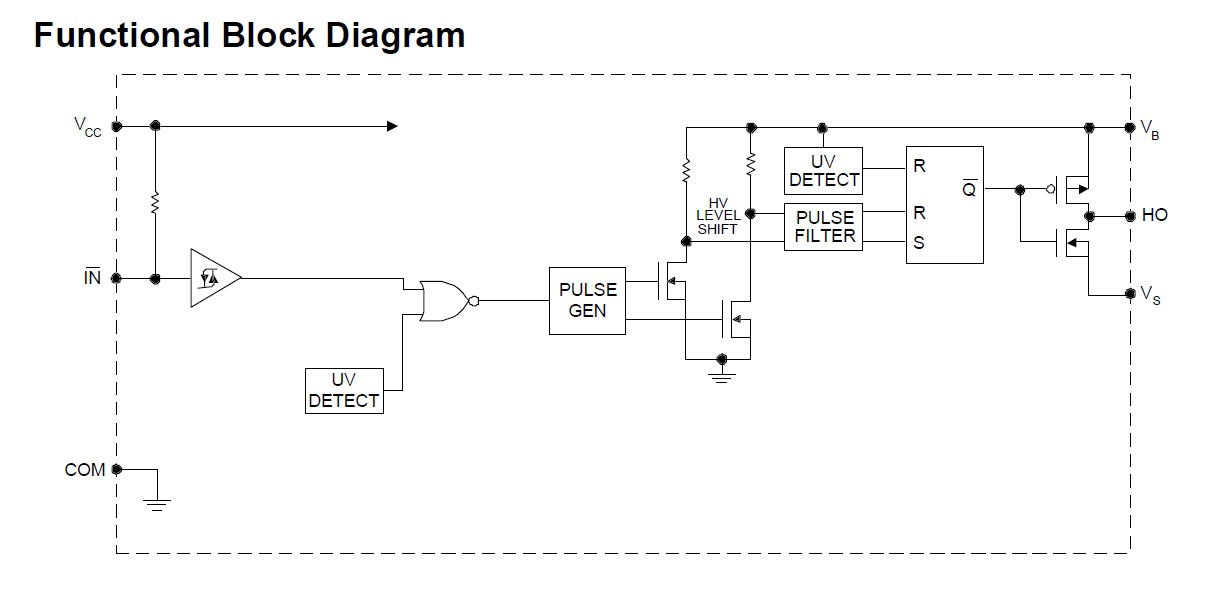

Product Summary

The IR2118 is a high voltage, high speed power MOSFET and IGBT driver. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS outputs. The output driver of the IR2118 features a high pulse current buffer stage designed for minimum cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high or low side configuration which operates up to 600 volts.

Parametrics

IR2118 absolute maximum ratings: (1)VB High Side Floating Supply Voltage: -0.3 to 625 V; (2)VS High Side Floating Supply Offset Voltage VB: - 25 VB to + 0.3 V; (3)VHO High Side Floating Output Voltage VS: - 0.3 VB to + 0.3 V; (4)VCC Logic Supply Voltage: -0.3 to 25 V; (5)VIN Logic Input Voltage: -0.3 VCC to + 0.3 V; (6)dVs/dt Allowable Offset Supply Voltage Transient: 50 V/ns; (7)PD Package Power Dissipation @ TA ≤ +25℃: 1.0 W; (8)RqJA Thermal Resistance, Junction to Ambient: 125 ℃/W; (9)TJ Junction Temperature: 150 ℃; (10)TS Storage Temperature: -55 to 150 ℃; (11)TL Lead Temperature: 300 ℃.

Features

IR2118 features: (1)nFloating channel designed for bootstrap operatioFully operational to +600V Tolerant to negative transient voltage dV/dt immune; (2)Gate drive supply range from 10 to 20V; (3)Undervoltage lockout; (4)CMOS Schmitt-triggered inputs with pull-down; (5)Output out of phase with input.
