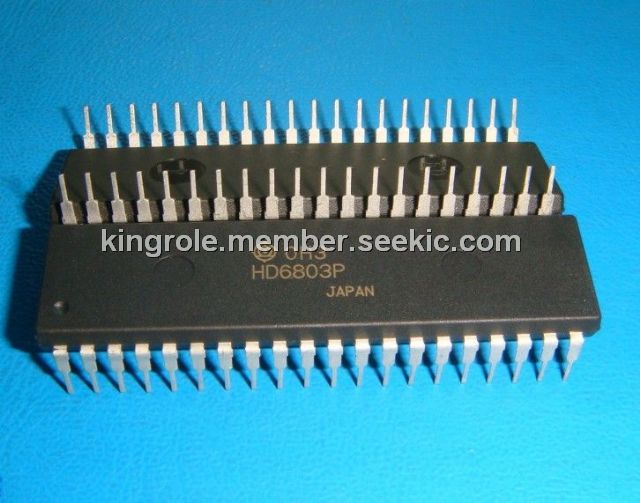

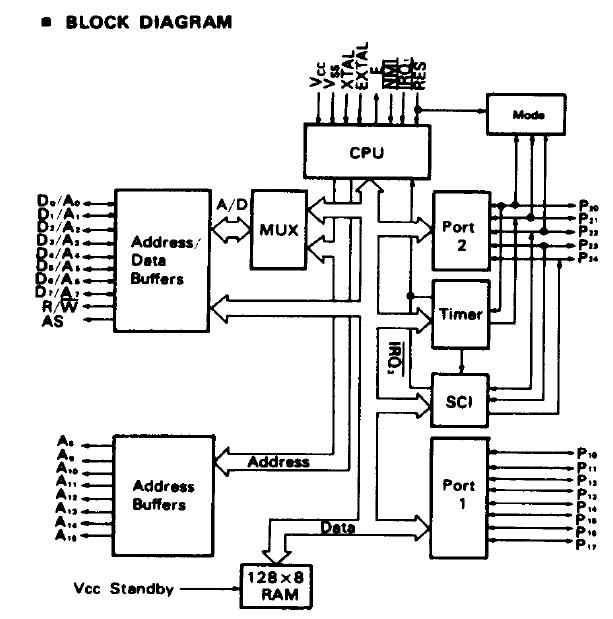

The HD6803P is an 8-bit micro processing unt. The device is object code compatible with the HD6800 with improved excution times of key instructions plus several new 16-bit and 8-bit instruction including an 8×8 unsigned to 65k bytes. The HD6803P is TTL compatible and required one +0.5Volt power supply. The HD6803P has 128 bytes of RAM, serial communications interface (SCI) and parallel I/O as well as a three function 16-bit timer.
Parametrics
HD6803P absolute maximum ratings: (1)supply voltage, VCC: -0.3 to 7.0V; (2)input voltage, Vin: -0.3 to 7.0V; (3)operating temperature, Topr: 0 to 70℃; (4)storage temperature, Tstg: -55 to 150℃.
Features
HD6803P features: (1)expanded HMCS6800 instruction set; (2)8×8 multiply; (3)on-chip serial communications interface; (4)16-bit timer; (5)expandable to 85k bytes; (6)multiplexed address and data; (7)128 bytes of RAM; (8)13 paralledl I/O lines; (9)internal clock/divided-by-four; (10)TTL compatible inputs and outputs; (11)interrupt capability; (12)compatible with MC6803 and MC6803-1.
