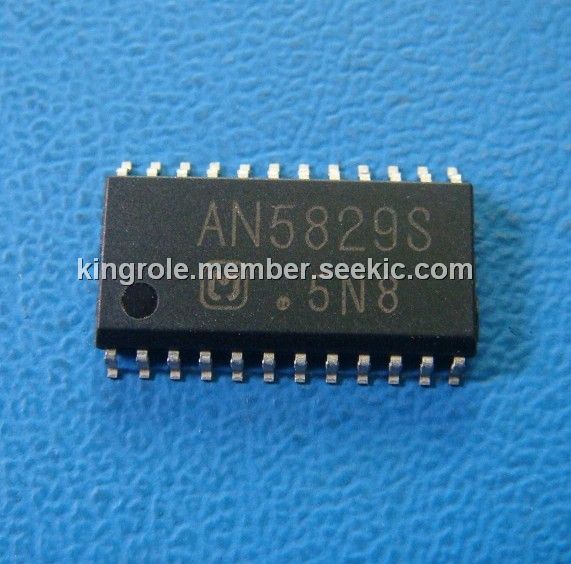

Product Summary
The AN5829S is a multiplex sound demodulation IC dedicated to the U.S. television and incorporates a bidirectional I2C interface (adjustment, mode SW), an AGC circuit and external stereo input switches (2 systems).
Parametrics
AN5829S absolute maximum ratings: (1)Supply voltage VCC: 6.0 V; (2)Supply current ICC: 25 mA; (3)Power dissipation: 2 PD 150 mW; (4)Operating ambient temperature 1 Topr: -20 to +75 ℃; (5)Storage temperature 1 Tstg: -55 to +125 ℃.
Features
AN5829S features: (1)Stereo demodulation, SAP demodulation, dbx noise reduction, AGC, external stereo input SW and I2C bus interface are integrated in a single chip; (2)Bi-directional I2C bus makes it possible to monitor MPX input level, separation adjustment (3 places), mode changeover and receiving status.; (3)Eliminated external parts (multi-sound block: 21 pieces-14 pieces; (4)Lower power dissipation (VCC = 5 V, ITOT = 18 mA).

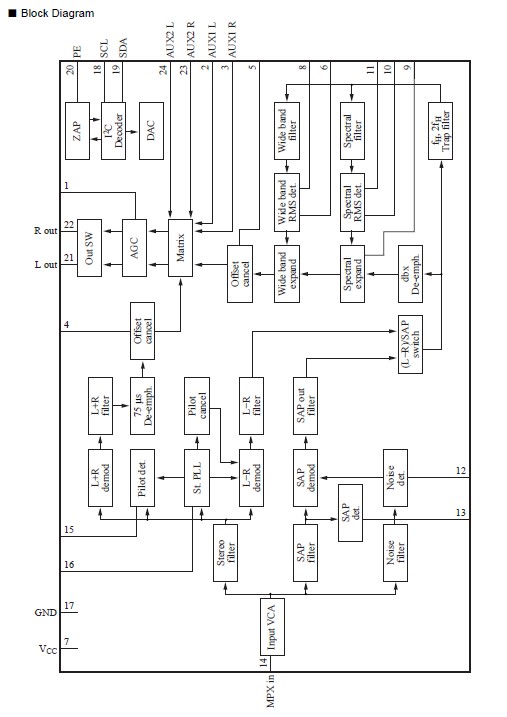

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
AN5829S |
Other |
Data Sheet |
Negotiable |
|
||||||
