The AN5792 is an intergrated circuit designed for CRT display horizontal signal processing circuit.
Parametrics
AN5792 absolute maximum ratings: (1)Supply voltage VCC: 13.2V; (2)Supply current ICC: 50 mA; (3)Power dissipation PD: 1140 mW; (4)Operating ambient temperature Topr: – 20 to +70℃; (5)Storage temperature Tstg: – 40 to +150℃.
Features
AN5792 features: (1)Horizontal synchronous signal is available in both polarities Wide range of horizontal osciallation frequency : 14kHz to 60kHz; (2)Output pulse width: 2μs to 40μs; (3)Package, AN5792...F-12S (12-Pin SIL plastic package with fin).

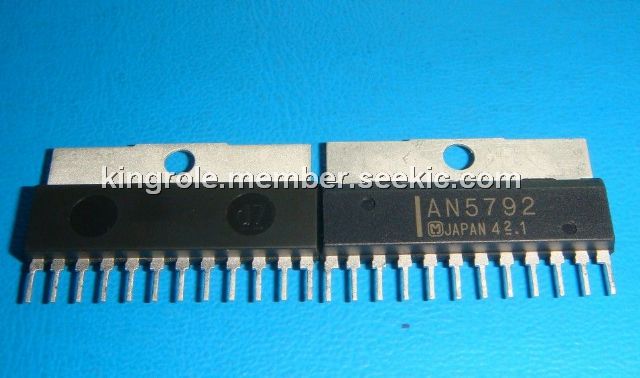

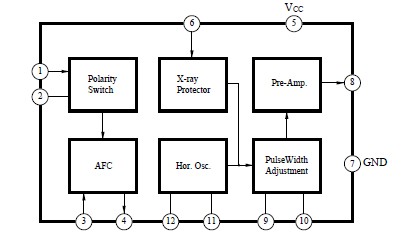

Diagrams
