Product Summary
The ADM232LAR line driver/receiver is intended for all EIA-232-E and V.28 communications interfaces, especially in applications where ±12 V is not available. The ADM232LAR features a low power shutdown mode that reduces power dissipation to less than 5 mW, making them ideally suited for battery powered equipment. Two receivers remain enabled during shutdown on the ADM232LAR. The ADM232LAR does not require any external component and is particularly useful in application where printed circuit board space is critical.
Parametrics
ADM232LAR absolute maximum ratings: (1)Vcc: –0.3 V to +6 V; (2)V+: (VCC – 0.3 V) to +14 V; (3)V–: +0.3 V to –14 V; (4)Input Voltages, TIN: –0.3 V to (VCC + 0.3 V); (5)RIN: ±30 V; (6)Output Voltages, TOUT: (V+, + 0.3 V) to (V–, – 0.3 V); (7)ROUT: –0.3 V to (VCC + 0.3 V); (8)Short Circuit Duration, TOUT: Continuous.
Features
ADM232LAR features: (1)Single 5 V Power Supply; (2)Meets All EIA-232-E and V.28 Specifications; (3)120 kB/s Data Rate; (4)On-Board DC-DC Converters; (5)69 V Output Swing with +5 V Supply; (6)Small 1 mF Capacitors; (7)Low Power Shutdown £1 mA; (8)Receivers Active in Shutdown (ADM223); (9)ESD > 2 kV; (10)630 V Receiver Input Levels; (11)Latch-Up FREE; (12)Plug-In Upgrade for MAX223/230-241; (13)Plug-In Upgrade for AD230–AD241.

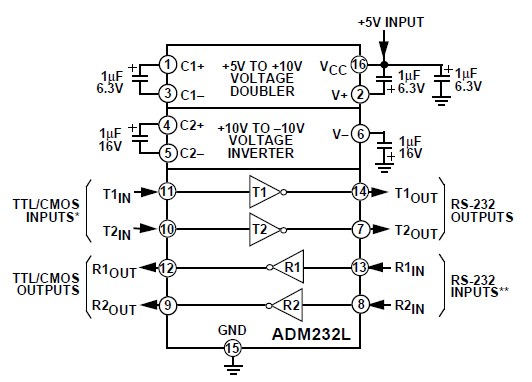

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

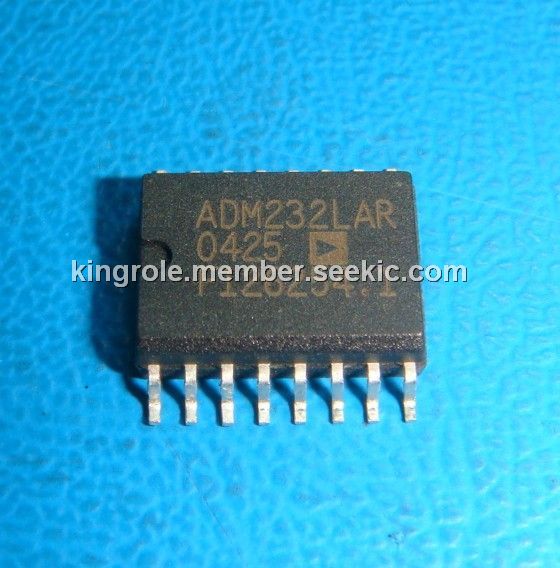

ADM232LAR |
IC TX/RX DUAL RS-232 5VLP 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||||
ADM232LAR-REEL |
IC TXRX RS-232 DUAL 5V 16SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||
ADM232LARZ |
IC TX/RX DUAL RS-232 5VLP 16SOIC |
Data Sheet |
|
|
||||||||||||||||||||||
ADM232LARZ-REEL |
IC TXRX RS-232 2:2 5V LP 16SOIC |
Data Sheet |
|
|
