Product Summary

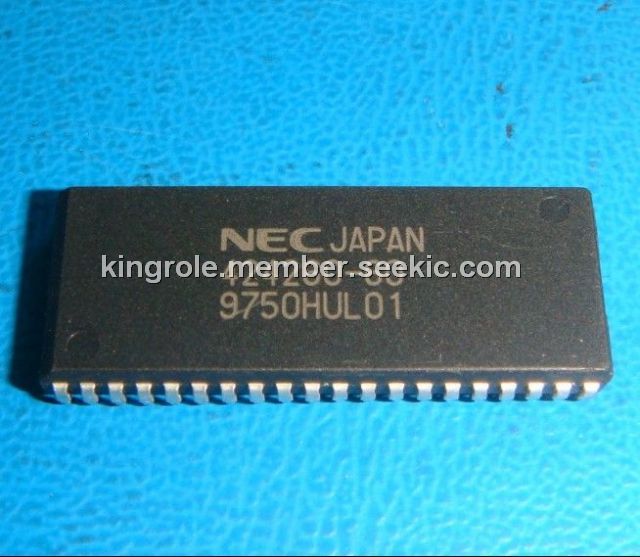

The 424260-60 is the 262,144 words by 16 bits dynamic CMOS RAM. The fast page mode and byte read/write mode capability of the 424260-60 realize high speed access and low power consumption. Besides, the 424260-60 can execute CAS before RAS self refresh.

Parametrics

424260-60 maximum ratings: (1)Voltage on any pin relative to GND: –1.0 to +7.0 V; (2)Supply voltage: –1.0 to +7.0 V; (3)Output current: 50 mA; (4)Power dissipation: 1W; (5)Operating ambient temperature: 0 to +70 ℃; (6)Storage temperature: –55 to +125 ℃.

Features

424260-60 features: (1)262,144 words by 16 bits organization; (2)Single +5.0 V ±10 % power supply; (3)Fast access and cycle time.

Diagrams
