Product Summary
The 2N2857 is a NPN transistor. It is designed for amplifier, oscillator and converter applications up to 500MHz.
Parametrics
2N2857 absolute maximum ratings: (1)VCBO Collector – Base Voltage: 30V; (2)VCEO Collector – Emitter Voltage: 15V; (3)VEBO Emitter – Base Voltage: 2.5V; (4)IC Collector Current: 40mA; (5)PD Total Device Dissipation @ TA =25℃: 200mW; (6)PD Total Device Dissipation @ TC =25℃: 300mW; (7)TSTG , TJ Operating and Storage Temperature Range: -65 to 200℃.
Features
2N2857 features: silicon NPN transistor.

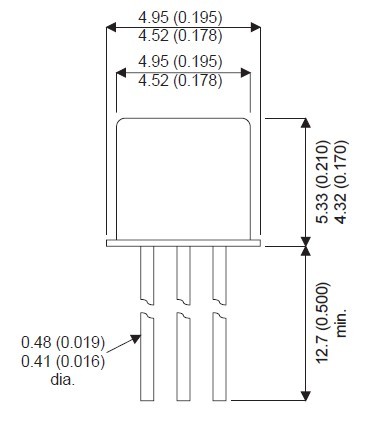

Diagrams
