Product Summary

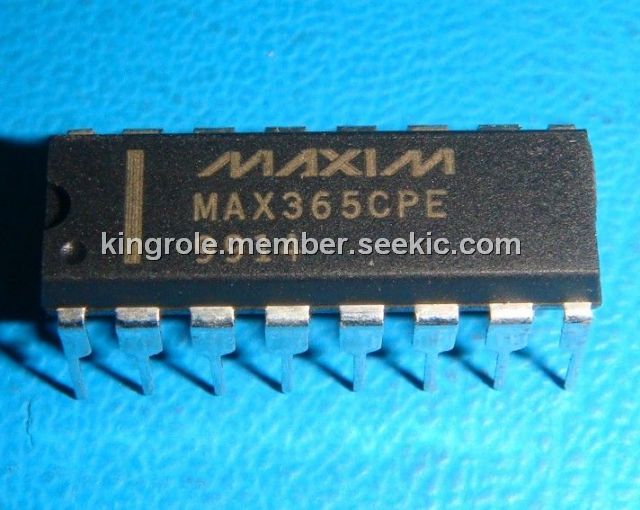

The MAX365CPE is a precision, quad, single-pole single-throw (SPST) analog switch. The MAX365CPE has four normally open (NO) switches. The device offers low-channel on resistance, guaranteed to match within 2 between channels and to remain flat over the analog signal range. The applications of the MAX365CPE include Sample-and-Hold Circuits, Communication Systems, Guidance and Control Systems, Battery Operated Systems, Heads-Up Displays PBX, PABX, Test Equipment and Military Radios.

Parametrics

MAX365CPE absolute maximum ratings: (1)Voltage Referenced to V-, V+: 44V; GND: 25V; VL: (GND - 0.3V) to (V+ + 0.3V); IN_, COM_, NO_, or NC_: (V- - 2V) to (V+ + 2V) or 30mA; (2)Continuous Current (any terminal): 30mA; (3)Peak Current COM_, NO_, or NC_(pulsed at 1ms, 10% duty cycle max): 100mA; (4)ESD: 2000V; (5)Continuous Power Dissipation: 842mW; (6)Operating Temperature Ranges: 0 to +70℃; (7)Storage Temperature Range: -65 to +150℃; (8)Lead Temperature (soldering, 10s): +300℃.

Features

MAX365CPE features: (1)Low On Resistance: < 45Ω Typical; (2)Guaranteed Matched On Resistance Between Channels: < 2Ω; (3)Guaranteed Flat On Resistance over Full Analog Signal Range: △9Ω Max; (4)Guaranteed Charge Injection: < 10pC; (5)Guaranteed Off-Channel Leakage: < 4nA at +85℃; (6)ESD Guaranteed > 2000V per Method 3015.7; (7)Single-Supply Operation (+10V to +30V); Bipolar-Supply Operation (±4.5V to ±20V); (8)TTL-/CMOS-Logic Compatible; (9)Rail-to-Rail Analog Signal Handling Capability.

Diagrams

MAX365CPE pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX365CPE+
MAX365CPE+
Maxim Integrated Products
Analog Switch ICs
Data Sheet
Negotiable
MAX365CPE
MAX365CPE
Maxim Integrated Products
Analog Switch ICs
Data Sheet
Negotiable
