LM358D

operational amplifier, SOP, -0.3 to 32V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.08~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.08~0.10

PartNumber:: LM358D

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. winona's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-13

From Other Seller

Part Number:LM358D
US $0.08 - 0.10
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
BD9774HFP

US $0.70 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

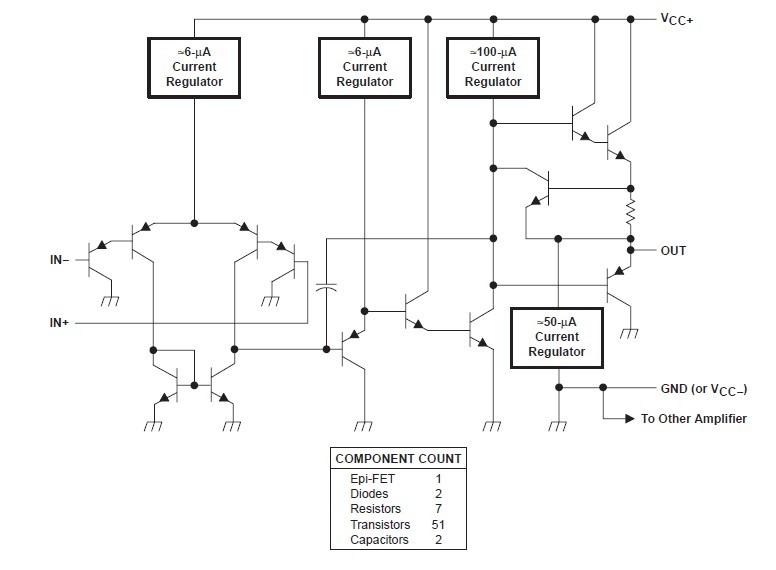

The LM358D is a dual operational amplifier. It consists of two independent, high-gain, frequency-compensated operational amplifiers designed to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3V to 32V, and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage. Applications of the LM358D include transducer amplifiers, dc amplification blocks, and all the conventional operational amplifier circuits that now can be implemented more easily in single-supply-voltage systems.

Parametrics

LM358D absolute maxing ratings: (1)Supply voltage, VCC: ±16 or 32V; (2)Differential input voltage, VID: ±32V; (3)Input voltage, VI (either input): -0.3 to 32V; (4)Package thermal impedance, θJA, D package: 97℃/W; DGK package: 172℃/W; P package: 85℃/W; PS package: 95℃/W; PW package: 149℃/W; (5)Operating virtual junction temperature, TJ: 150℃; (6)Case temperature for 60 seconds FK package: 260℃; (7)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds JG package: 300℃; (8)Storage temperature range, Tstg: -65 to 150℃.

Features

LM358D features: (1)Wide Supply Range: Single Supply: 3V to 32V or Dual Supplies: ±1.5 V to ±16 V; (2)Low Supply-Current Drain, Independent of Supply Voltage: 0.7mA Typ; (3)Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground; (4)Low Input Bias and Offset Parameters: Input Offset Voltage: 3mV Typ, A Versions: 2mV Typ; Input Offset Current: 2nA Typ; Input Bias Current : 20nA Typ, A Versions: 15 nA Typ; (5)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V; (6)Open-Loop Differential Voltage Amplification: 100 V/mV Typ; (7)Internal Frequency Compensation.
