Product Summary

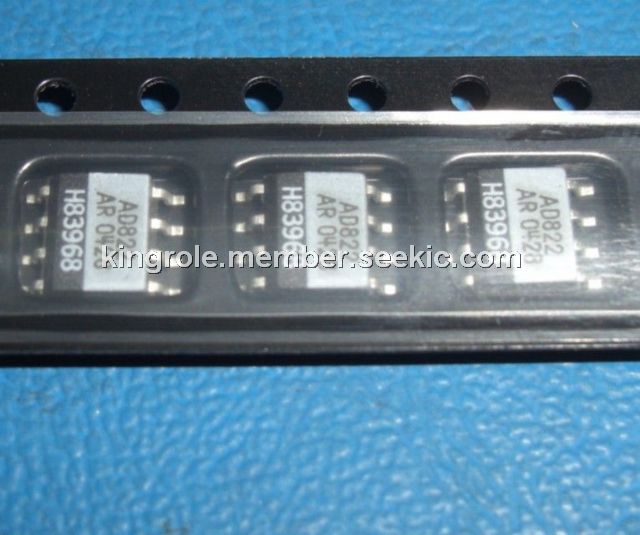

The AD822AR is a dual precision, low power FET input op amp that can operate from a single supply of +3.0 V to 36 V, or dual supplies of ±1.5 V to ±18 V. The AD822AR is offered in three varieties of 8-pin package: plastic DIP, hermetic cerdip and surface mount (SOIC) as well as die form.

Parametrics

AD822AR maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation:Plastic DIP (N) ,Observe Derating Curves; Cerdip (Q), Observe Derating Curves; SOIC (R), Observe Derating Curves; (3)Input Voltage: (+VS + 0.2 V) to –(20 V + VS); (4)Storage Temperature Range (R): –65℃ to +150℃; (5)Lead Temperature Range (Soldering 60 sec): +260℃.

Features

AD822AR features: (1)TRUE SINGLE SUPPLY OPERATION; (2)Output Swings Rail to Rail; (3)Input Voltage Range Extends Below Ground; (4)Single Supply Capability from +3 V to +36 V; (5)Dual Supply Capability from ±1.5 V to ±18 V; (6)HIGH LOAD DRIVE; (7)Capacitive Load Drive of 350 pF, G = 1; (8)Minimum Output Current of 15 mA; (9)EXCELLENT AC PERFORMANCE FOR LOW POWER.

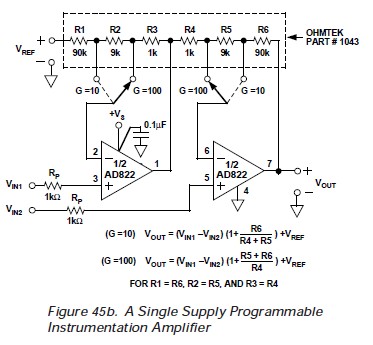

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD822AR
AD822AR

IC OPAMP GP R-R 1.9MHZ LP 8SOIC
Data Sheet
0-98: $3.52
AD822ARM-R2
AD822ARM-R2
Analog Devices Inc
IC OPAMP DUAL R-R FET-IN 8-MSOP
Data Sheet
Negotiable
AD822ARM-REEL
AD822ARM-REEL

IC OPAMP GP R-R 1.9MHZ LP 8MSOP
Data Sheet
Negotiable
AD822ARMZ
AD822ARMZ

IC OPAMP GP R-R 1.9MHZ LP 8MSOP
Data Sheet
0-50: $3.04
AD822ARMZ-R2
AD822ARMZ-R2

IC OPAMP GP R-R 1.9MHZ LP 8MSOP
Data Sheet
Negotiable
AD822ARMZ-REEL
AD822ARMZ-REEL

IC OPAMP GP R-R 1.9MHZ LP 8MSOP
Data Sheet
0-1: $3.83
1-10: $3.45
10-25: $3.13
25-100: $2.84
100-250: $2.60
250-500: $2.38
500-1000: $2.06
AD822AR-REEL
AD822AR-REEL

IC OPAMP GP R-R 1.9MHZ LP 8SOIC
Data Sheet
0-2500: $2.29
AD822ARZ-REEL
AD822ARZ-REEL

IC OPAMP GP R-R 1.9MHZ LP 8SOIC
Data Sheet
0-2500: $1.98
